Description
Receiver Overview:

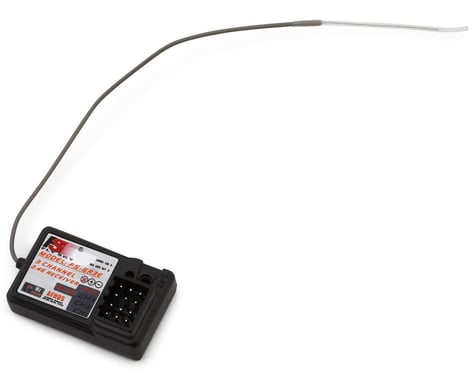

The Flysky 3-Channel AFHDS Receiver is a compact and reliable solution for basic RC applications, offering a solid connection for 3-channel setups. Designed with Flysky’s AFHDS wireless protocol, this receiver provides dependable performance and stable signal transmission for smaller-scale models. Its lightweight, minimal design makes it ideal for users who want to keep things simple and streamlined.
About the Receiver
Compact Performance with Core Functionality
Despite its size, the Flysky 3-Channel AFHDS Receiver delivers stable 2.4GHz signal reception over a ground range of up to 200 meters. The single-antenna design and basic 3-channel PWM output make it ideal for compact models where space and simplicity are priorities. While it doesn’t support telemetry or firmware updates, it remains a dependable option for straightforward control tasks. This receiver is perfect for hobbyists who need a no-frills, easy-to-integrate component for basic RC use.
Features:
- 3-channel PWM output
- Operates on 2.4GHz AFHDS protocol
- Ground range up to 200 meters
- Compact and lightweight at 5g
- 150mm single antenna
- Wide input voltage: 4.0–6.5V
- Basic PWM data port

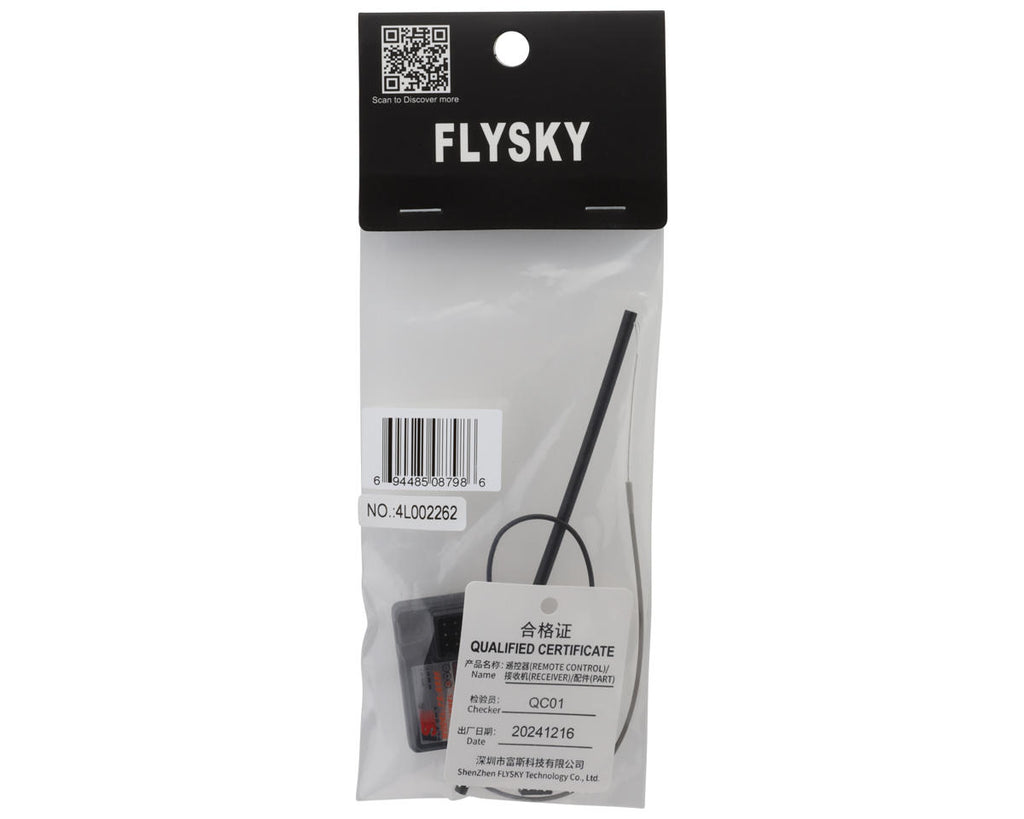

Includes:
- (1) 3-Channel AFHDS Receiver

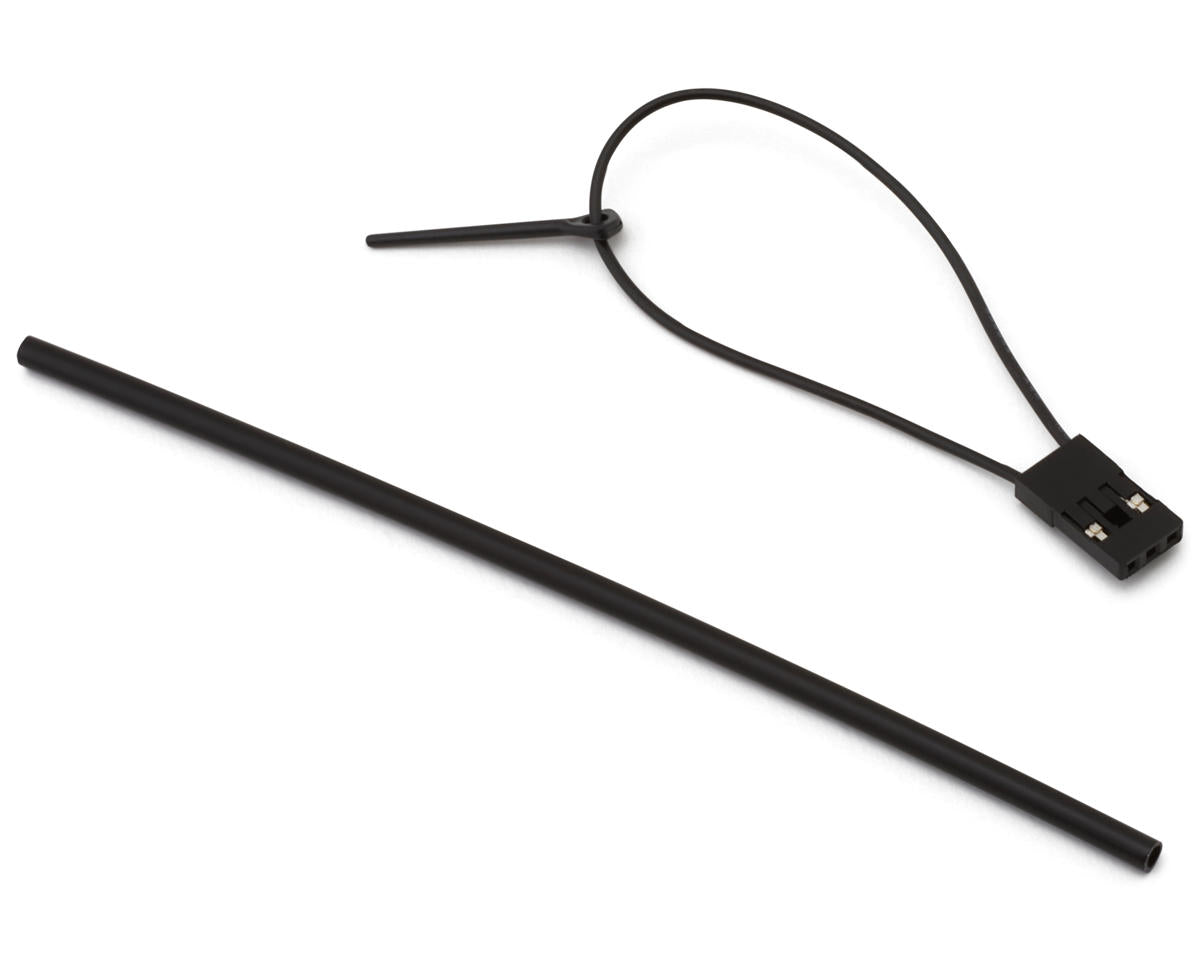

- (1) Antenna Tube
- (1) Bind Plug
Specifications:
| Channels | 3 |
|---|---|
| Frequency | 2.4GHz |
| Protocol | AFHDS |
| Range | 328-656ft (100-200m) |
| Input Power | 4.0-6.5V |
| Dimensions | 1.38x0.87x0.47in (35x22x12mm) |
| Weight | 0.18oz (5g) |
