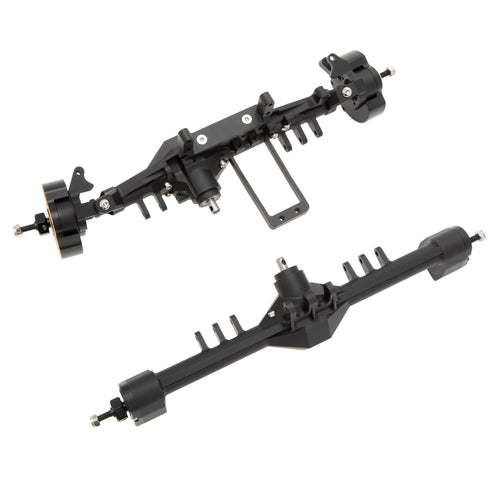

MEUS Racing Isokinetic 3-Section CVDs Portal Front Rear Axles for 1/10 Axial Capra 1.9 UTB DIY SCX10 SCX10 II

MEUS Racing Capra 1.9 Portal Axles Kit with Isokinetic 3-Section CVDs, Ackerman Steering Structure, and 2 Servo Mounts Output shaft 6mm-M4 for 1/10 Axial Capra 1.9 UTB AXI03004 LCG Chassis and DIY SCX10 SCX10 II Upgrades Parts.

Key Features:

• 1. Suitable for Axial 1/10 Capra, DIY SCX10 and SCX10 II chassis. It is also suitable for 1/10 Vanquish VRD Carbon and Vanquish H10 Rock Crawlers.

• 2. Capra front and rear metal axles are made of high-quality aluminum alloy, and the output shaft is 40CR material.
• 3. Equipped with 8/30T 20CR gears, it is sturdy and durable.
• 4. Isokinetic 3-Section CVD structure ensures no shaking at high speed and large angle.
• 5. The default steering angle is 48°. The steering angle can be increased to 55° by grinding the limit structure of the steering cup and using the widened ET kit(not included in the package) to increase the axle track.
• 6. The front axle optimizes the C-HUB structure, and the smaller C-HUB can obtain better rocky road passability.

• 7. The front axle is equipped with two servo mounting structures, which allows you to flexibly choose a better installation solution, and add a thrust rod mounting hole to obtain more adjustment space.
• 8. The front axle has a 96G brass portal gear cover on one side. Get a better center of gravity offset.

• 9. US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD ensures that there is no jerks when turning at large angles, 52° max. steering angle.

Specifications:

• Axle material: aluminum alloy

• Gear Cover: Brass
• Gear material: 20Cr Alloy Steel

• CVD shaft material: 40Cr Alloy Steel

• Gear ratio: 8/30T

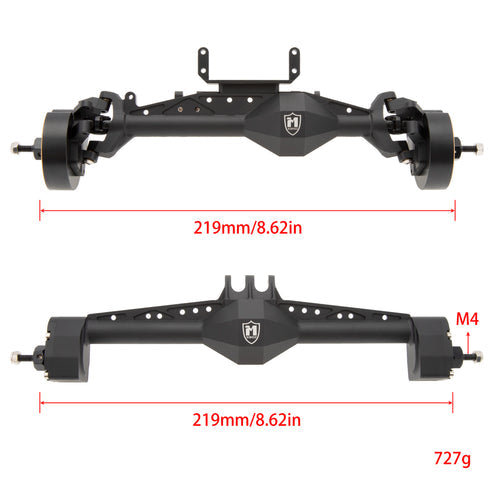

• Front axle total length: 219mm(8.62in)

• Rear axle total length: 219mm(8.62in)

• Front axle weight: 476.3g

• Rear axle weight: 250g
• 2 Front axles weight: 742.6g
• Front axle weight - no the weights: 265.7g
• Bearing size: 5x11x3mm
• Wheel hex adapter size: 6mm

Packing list:

1 × Front and rear axle
3 × Connecting rod

First servo mounting method:

Second servo mounting method:

Ackerman Steering

1/10 Axial Capra 1.9 UTB Isokinetic 3-Section CVD Front Rear Axles Video Shows:
