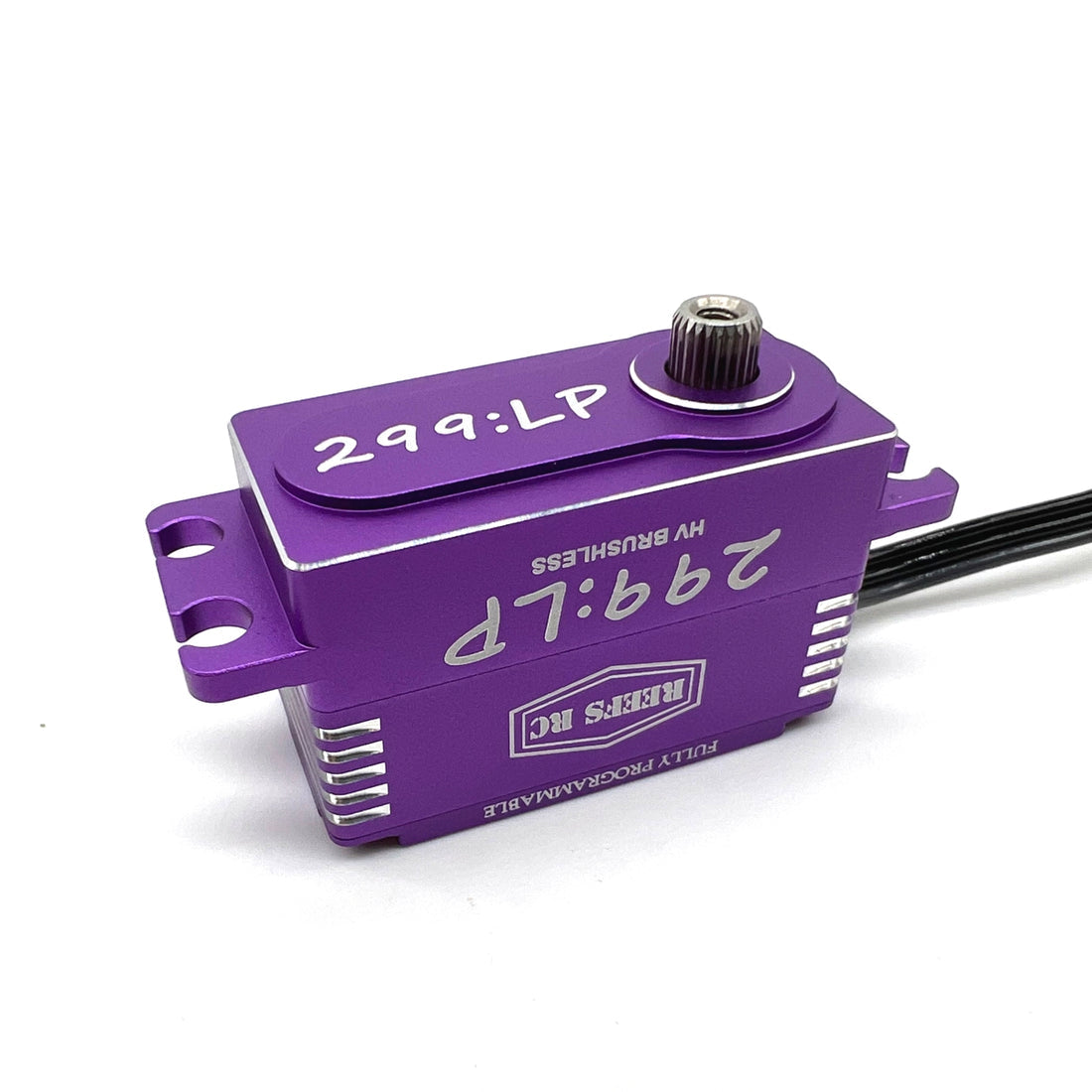

Reefs RC 299LP High Torque/Speed Brushless Low Profile Servo (High Voltage) (Purple)

Servo Overview:

Reefs 299LP High Torque/Speed Brushless Low Profile High Voltage Servo. Available in multiple anodized colors with a beautiful aluminum case, this powerful racing servo features a water-resistant low-profile design with a magnetic angle sensor and is capable of putting out 313oz-in (22.5kg-cm) of torque and 0.05sec/60° of speed at (8.4V)! Providing racers and drifters the speed and power needed in a low-profile, lightweight sleek design!

Features:

• Hi voltage capable
• High torque high speed brushless motor
• Water resistant low profile design
• Magnetic angle sensor
• Fully programmable with REEFS software (Reefs LINK required for programming)
• All aluminum case with side fins to maximize heat dissipation
• Anodized in multiple colors

Specifications:

• Speed:
• @6.0V: 0.07sec/60°
• @7.4V: 0.06sec/60°
• @8.4V: 0.05sec/60°
• Torque:
• @6.0V: 278oz-in (20kg-cm)
• @7.4V: 299oz-in (21.5kg-cm)
• @8.4V: 313oz-in (22.5kg-cm)
• Motor: Brushless
• Operating Voltage: 4.8V-8.4V
• Dimensions(LxWxH): 1.6"x0.79"x1.0" (40.8x20.2x26.5mm)
• Weight: 2.0oz (57.2g)
• Operating Spline: 25T (ProTek/Futaba)

Includes:

• (1) 299LP Low-Profile Racing Servo
• Servo Horns and Mounting Hardware
