SkyRC Racing

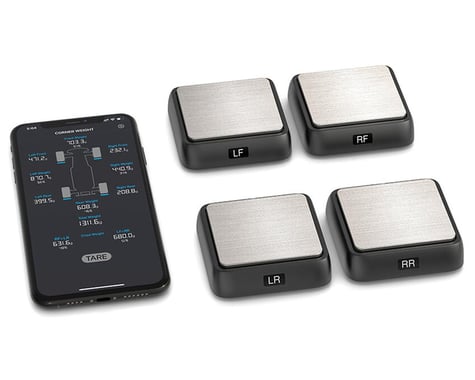

SkyRC SCWS2000 Bluetooth Corner Weight Scale System w/4 Scales

SkyRC SCWS2000 Bluetooth Corner Weight Scale System w/4 Scales

Regular price $129.99
Regular price Sale price $129.99
Sale Sold out
Shipping calculated at checkout.

The SkyRC SCWS2000 Bluetooth Corner Weight Scale System is the ultimate system for those looking to get their chassis balance dialed - without a rat nest of wires strewn across your bench! Even the slightest difference in weight balance has a significant impact when it comes to the handling performance of a car. The enhanced SkyRC SCWS2000 can help drivers easily measure and identify the corner weight distribution, using the RC Gears app on your Apple or Android device. With accuracy of +/- 1 gram, RC drivers can precisely adjust their car's weight at each corner to achieve precise left/right & front/rear balance.

Accuracy Meets Craftsmanship
Durable, high-quality aluminum is used for the sensor rebound material. Utilizing a precise manufacturing process, SkyRC created a high-precision I-shaped sensor. To improve the overall accuracy, the measurement algorithm is enhanced from the previous model, allowing the data to be obtained in the shortest possible time. The default unit is Gram, and switching to Ounce is also available! When an inaccuracy is found, the customized in-app program allows quick calibration using the 2000 gram weight, by tapping the screen three times.

BLE 5.0: Faster Connectivity and higher performance

This corner weighting system is powered by the latest Bluetooth 5.0 chip, resulting in a faster, more stable connection. When connected with your phone, the system displays the intuitive interface in full screen.

Small in size, Big in performance
SkyRC smart weighing system is small and portable in size. It can accurately measure the weight distribution of the chassis at all four corners. This allows the racer to quickly adjust the weight at each corner to achieve the desired balance.

The Intuitive App

The App simulates practical scenarios to be intuitive and straightforward. Each corner is highlighted in orange to indicate the current selection.

Long-lasting power on coin battery
The emphasis on the ultra-low power consumption of Bluetooth 5.0 and the proprietary protocol allow a CR2450 lithium coin battery to deliver the long-lasting, dependable performance for 30 continuous hours. *NOTE: Test conducted using Nanfu CR2450 lithium coin battery. There may be variation in battery life due to the changes in the environment. This data is for reference only.

NOTE: Phone shown in photos is not included.

Features:

  • App-enabled and data display in realtime via Bluetooth
  • Designed for drift and touring cars
  • Unit switchable between gram and oz
  • Powered by 4 x coin & button batteries
  • Measure the car's corner weight, front and rear distribution and make adjustment if necessary
  • The maximum weight limit for each scale is 2000 grams ( total 8000 grams )
  • Accurate measurement in 0.1g increments ( equivalent to 0.01 oz )

NOTE: RC Gears App Requires

  • iOS 9.0 or above
  • Android 8.0 or above

Specifications:
Dimension: 68*68*22.5mm
Net weight of each scale: 70g
Rated Voltage: 2.6V-3.6V
Rated Current: <10mA@DC3V
Battery: CR2450 3V Lithium Coin Battery
Maximum weight of each scale: 2000g
Tolerance: ±0.1g / 0.1oz
